• Chrome front bumper w/Spectra Gray cover
• Chrome rear step bumper w/step pad
• Dark argent air dam
• Color-keyed body-side molding w/bright trim
• Deluxe chrome grille
• Dual composite halogen headlamps w/auto on/off
• Daytime running lamps
• Fog lamps
• Cargo area lamp
• Dual chrome fold-a-way pwr heated mirrors
• Solar-Ray tinted glass (all windows)
• Deep tinted rear quarter/back glass
• Swing-out rear quarter windows
• Intermittent windshield wiper system
• Dual rear access doors hinged to rear of cab
• Removable tailgate w/badge name/decal
• Floor covering/under dash insulation

• LT decor

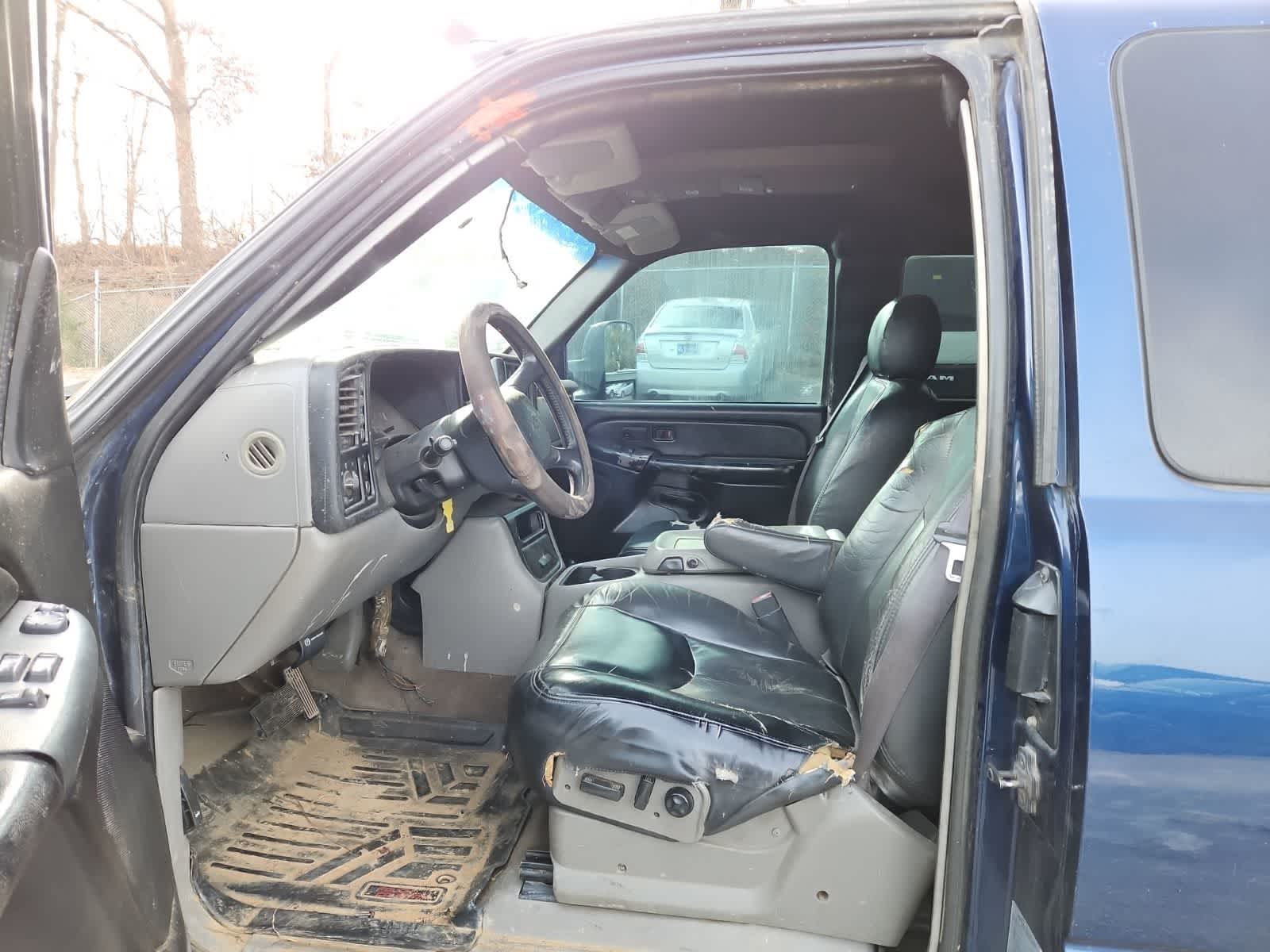

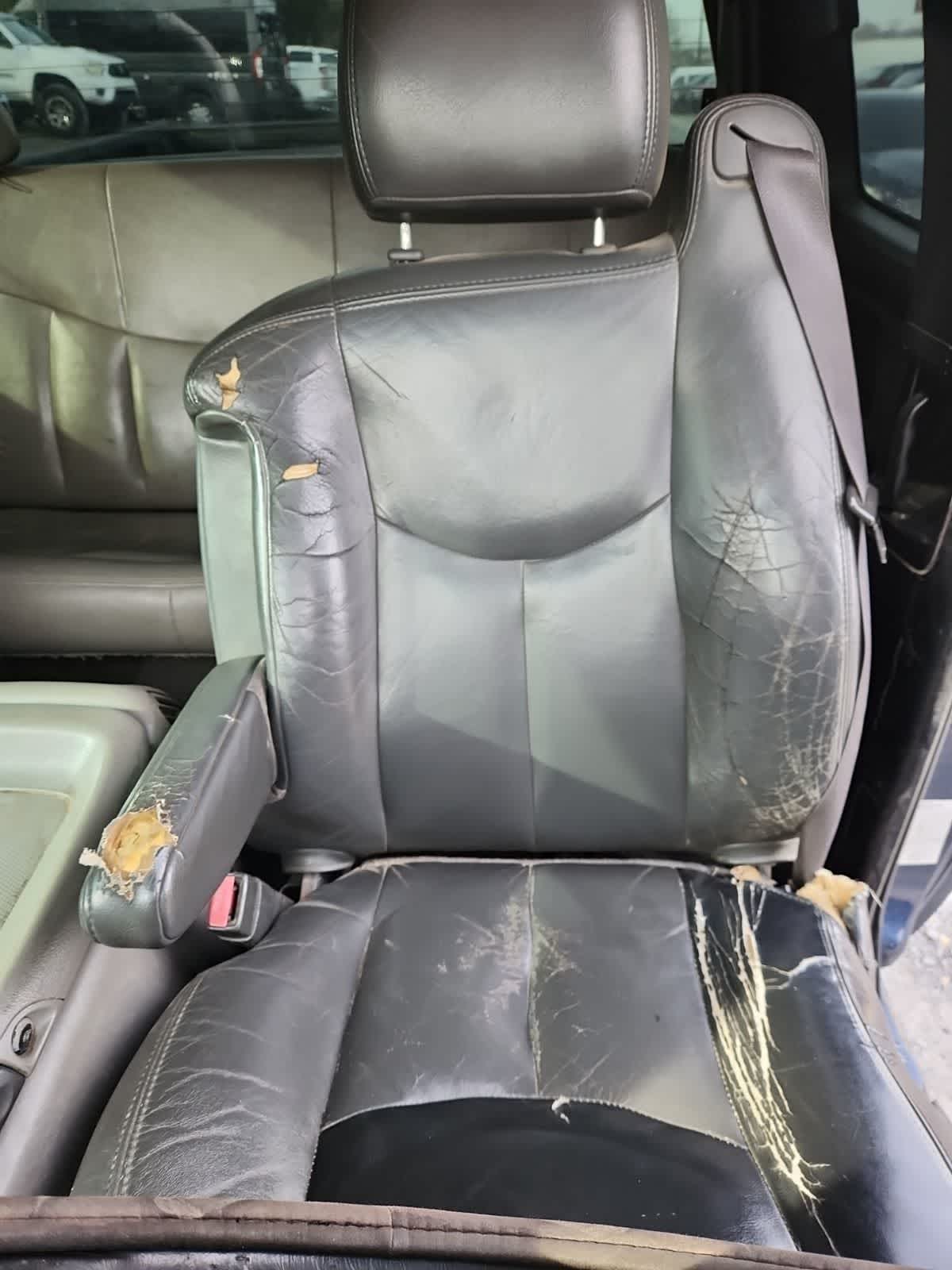

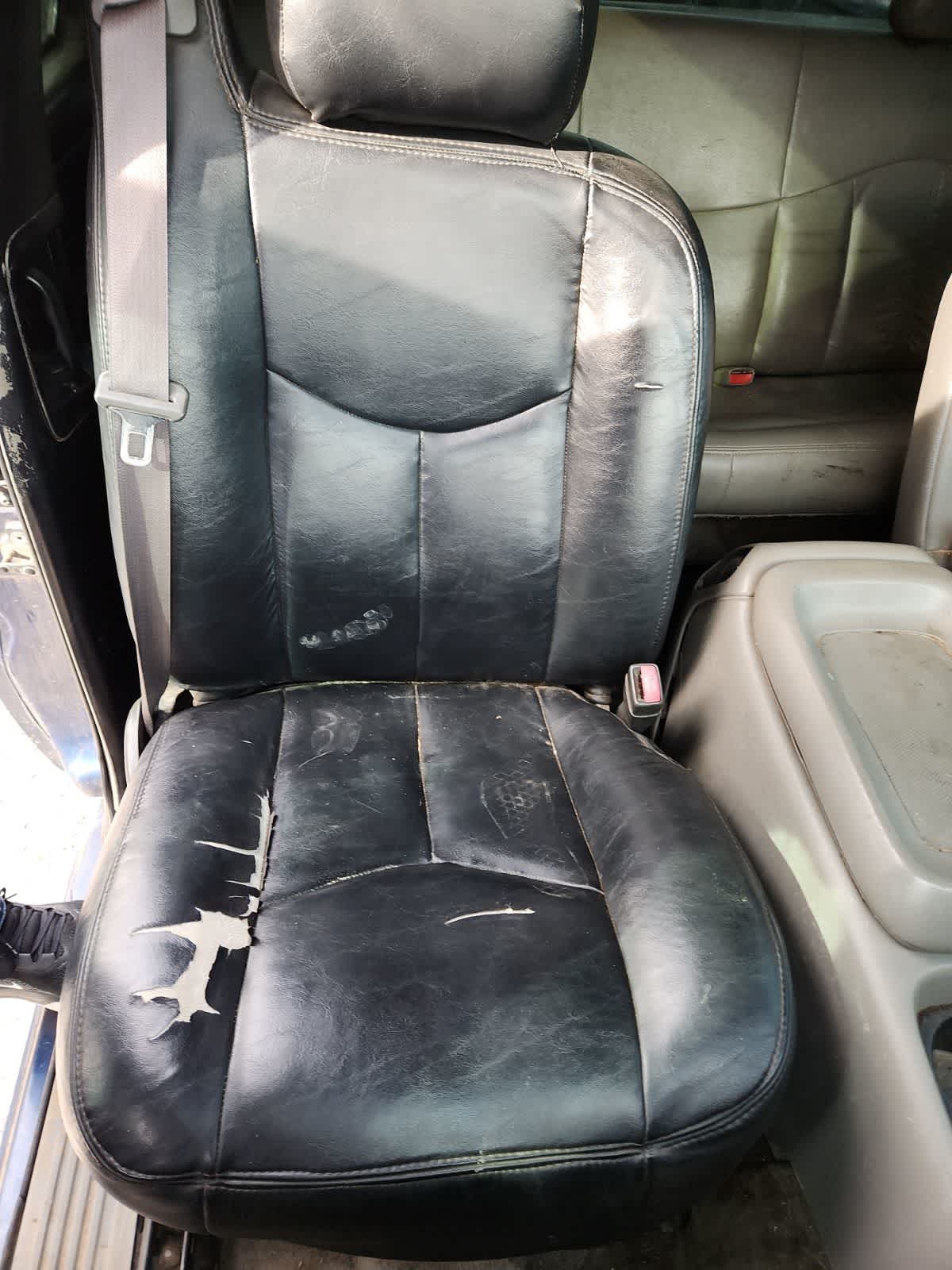

• Leather reclining heated bucket seats w/inboard armrest, dual pwr recline/ lumbar/thigh support/seatback bolster, 2-position 6-way memory driver seat

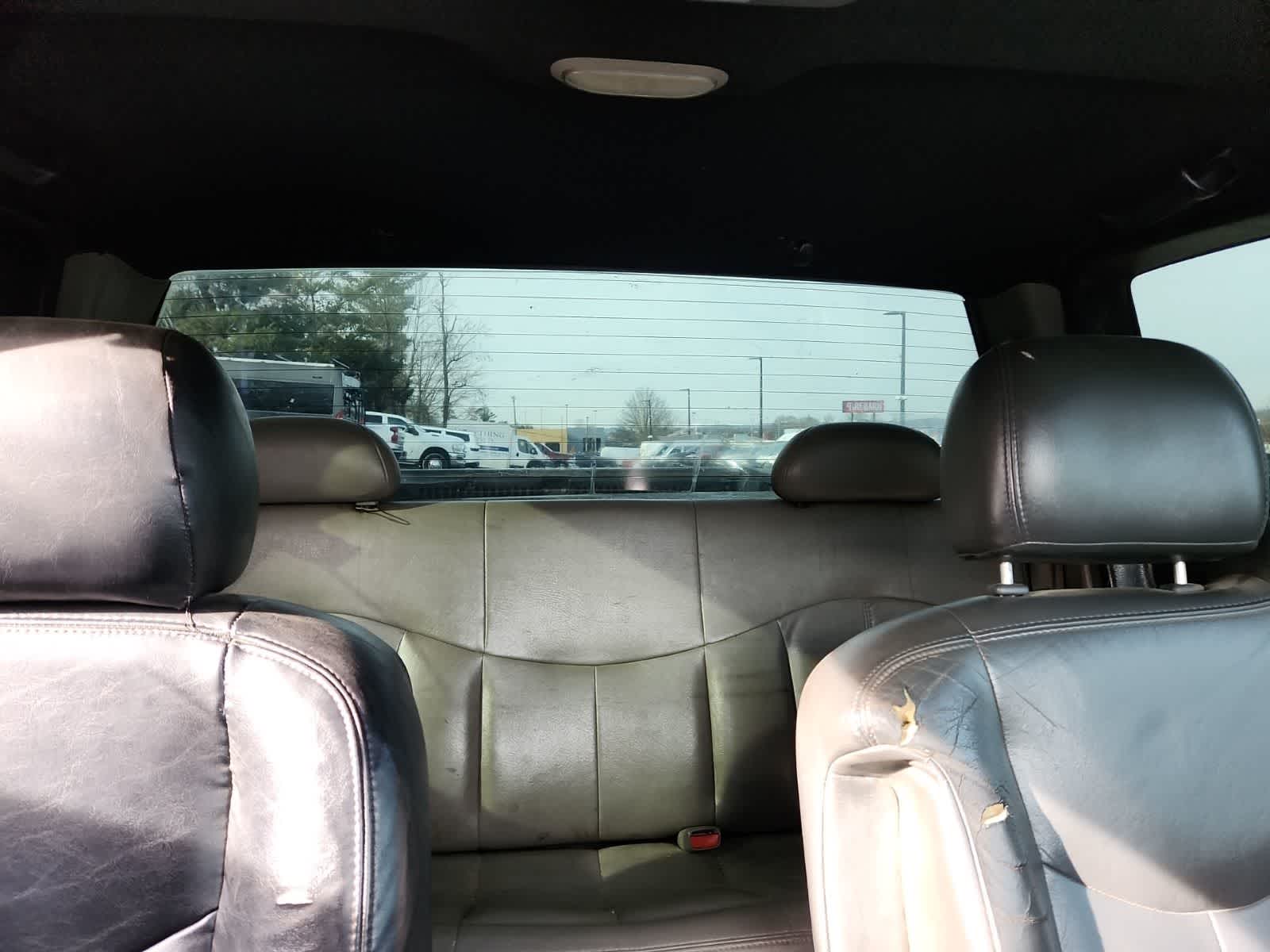

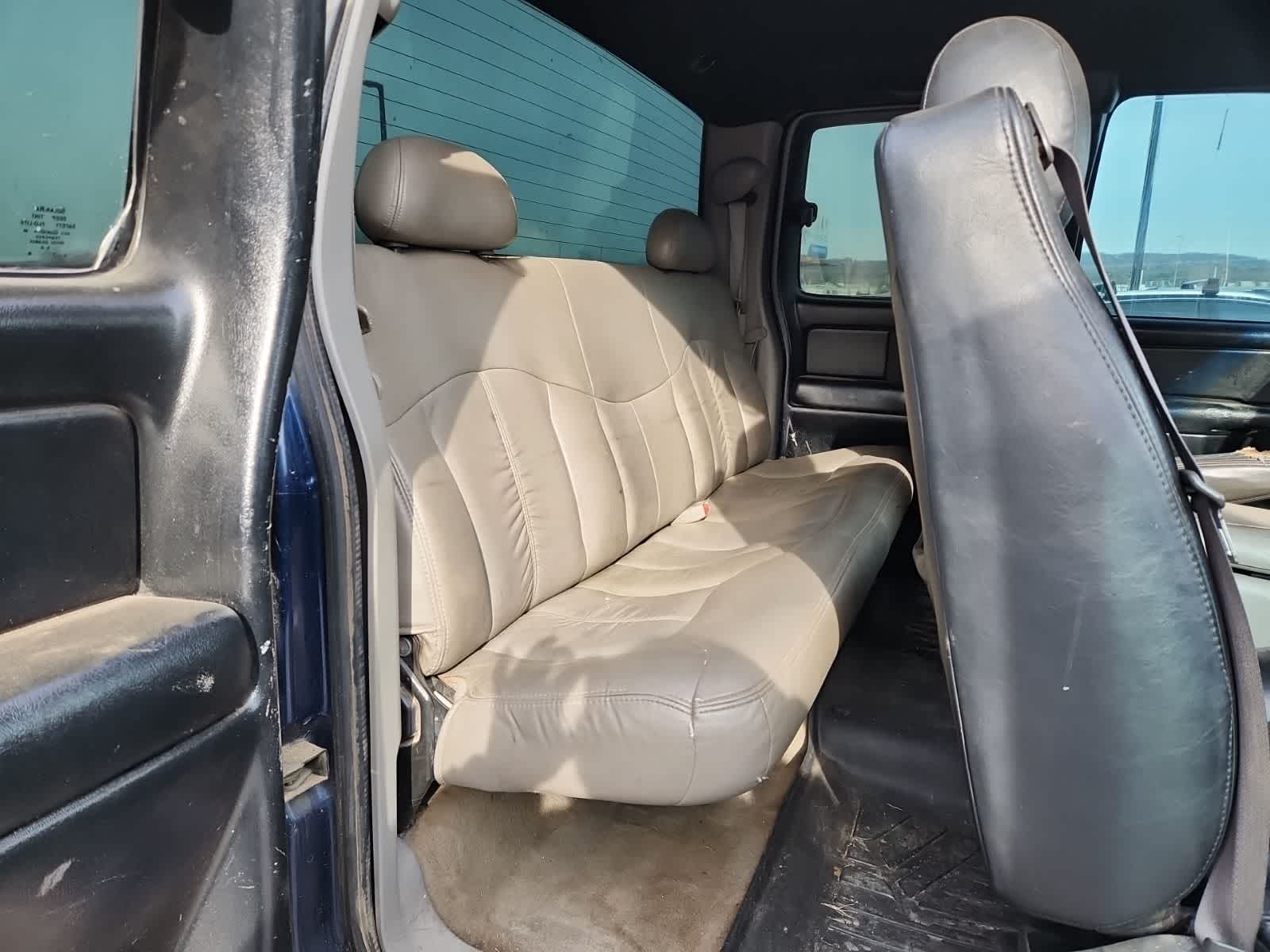

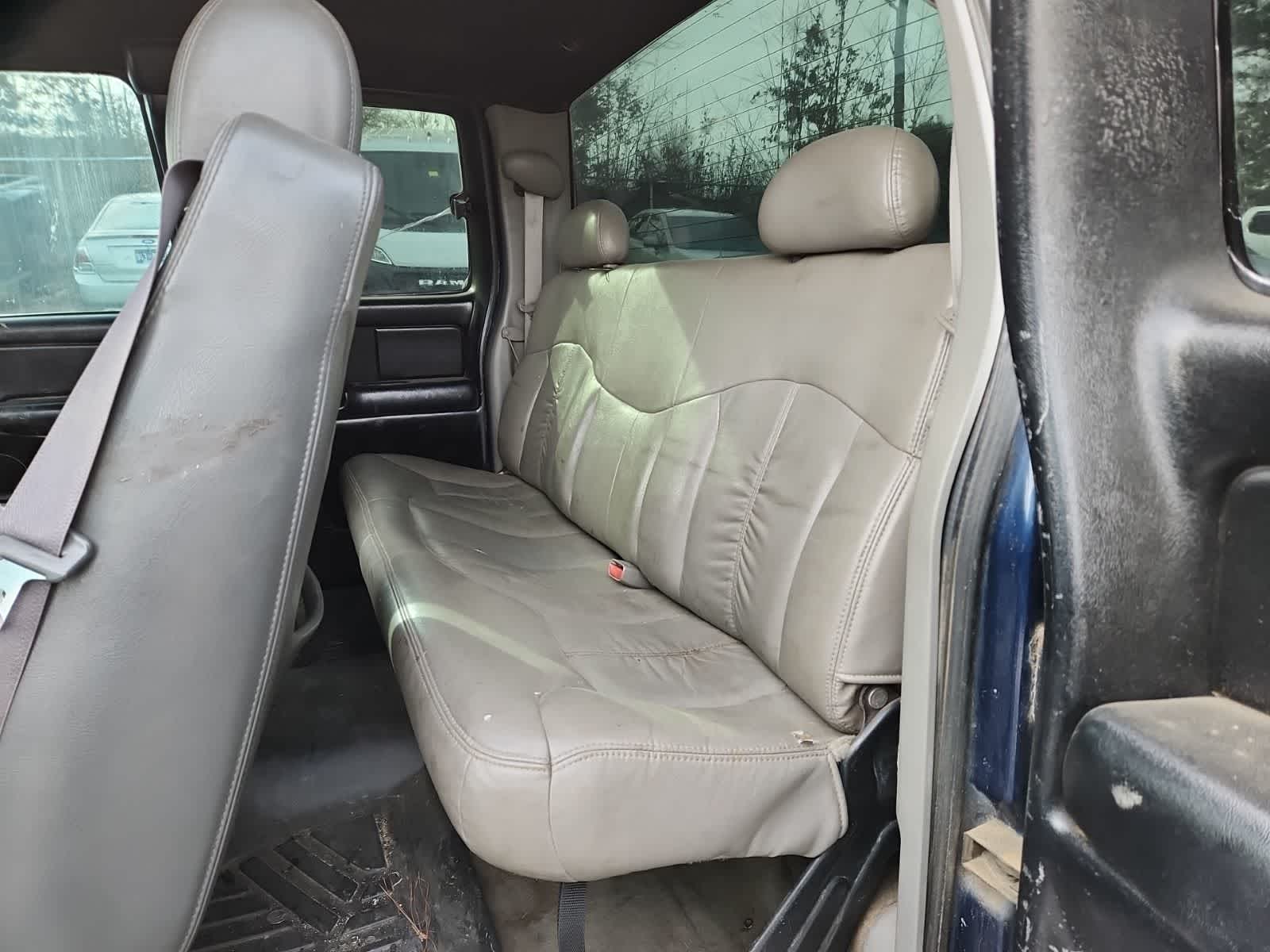

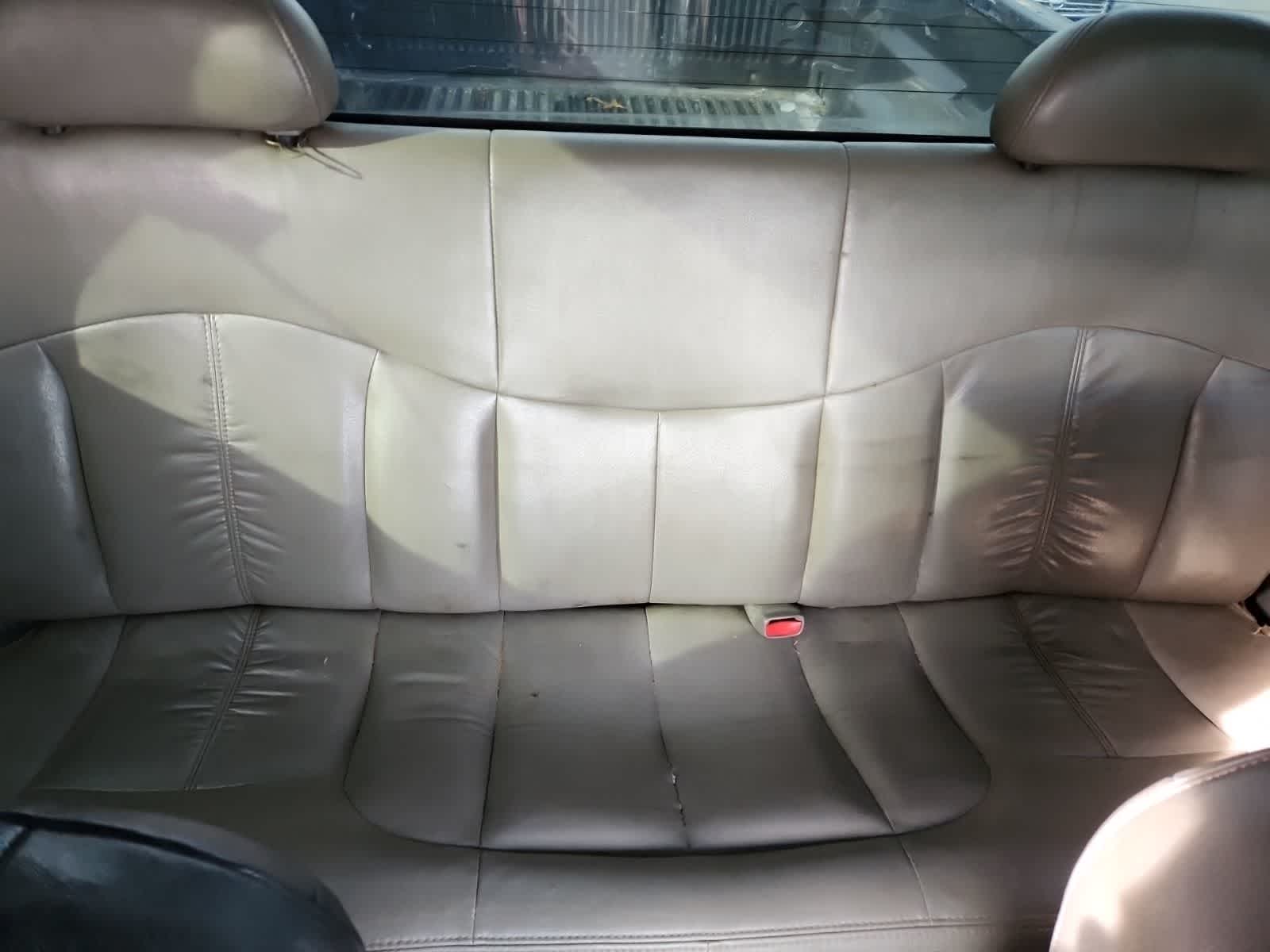

• 3-passenger folding rear bench seat w/matching trim
• Floor console
• Color-keyed full-floor carpeting w/front/rear rubber floor mats

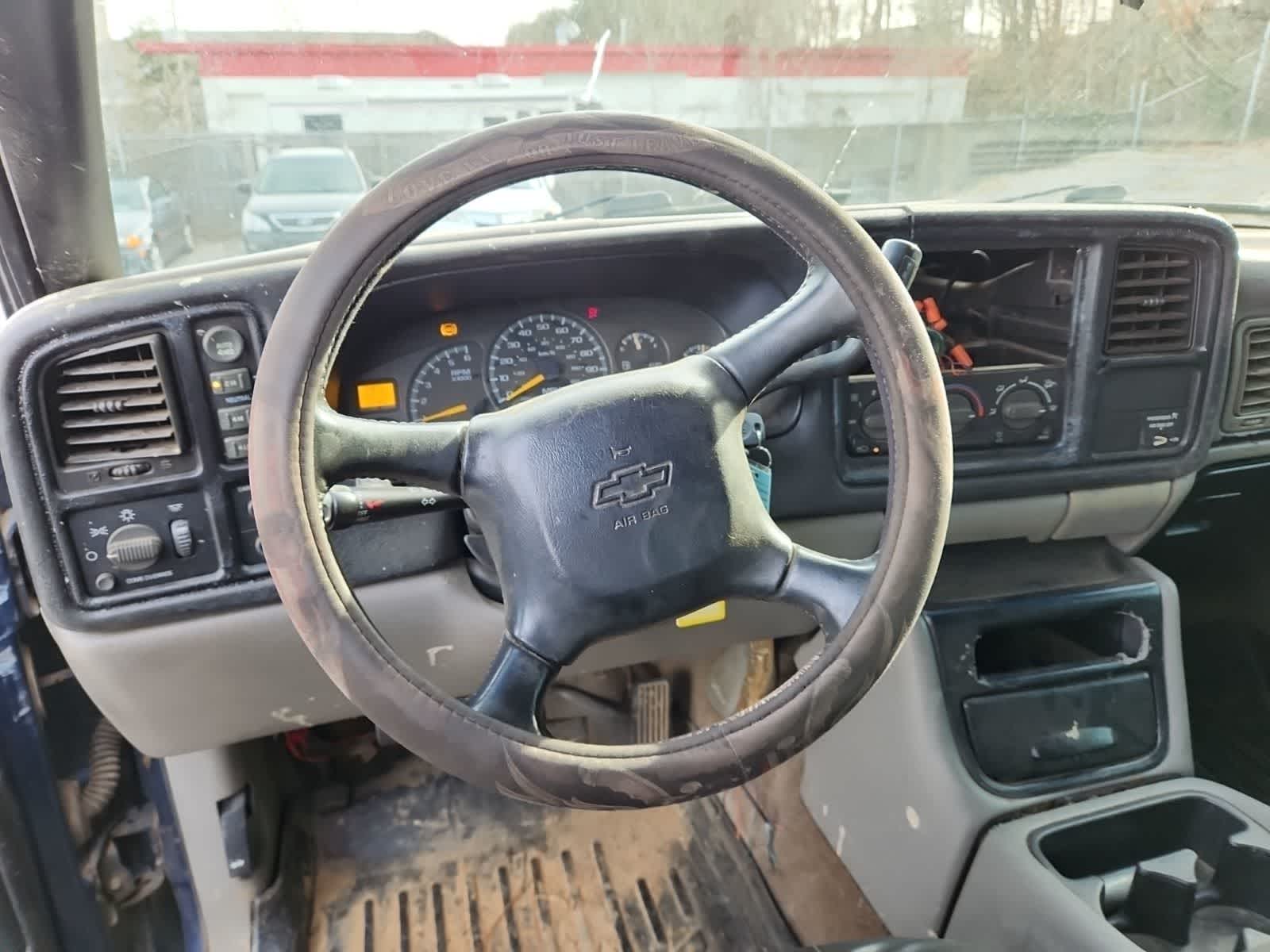

• Leather-wrapped steering wheel
• Tilt wheel
• Passlock theft deterrent security system
• Message center warnings-inc: system malfunction, trans overheat, low fuel, low coolant, vehicle security, oil level/temp/pressure/change needed
• Warning tones-inc: key-in ignition, seat belt, headlamp-on, turn signal
• Cruise control
• Auto pwr door locks/windows w/backlit switches
• Keyless entry w/content theft alarm
• Illum entry
• Air conditioning
• Heater/defogger w/side window defoggers
• Elect rear window defogger
• ETR AM/FM stereo w/compact disc, cassette-inc: seek-scan, digital clock, auto tone control, cassette search/repeat, theft lock, speed compensated volume, enhanced performance speaker system
• Dual dash cup holders
• Dual covered power points

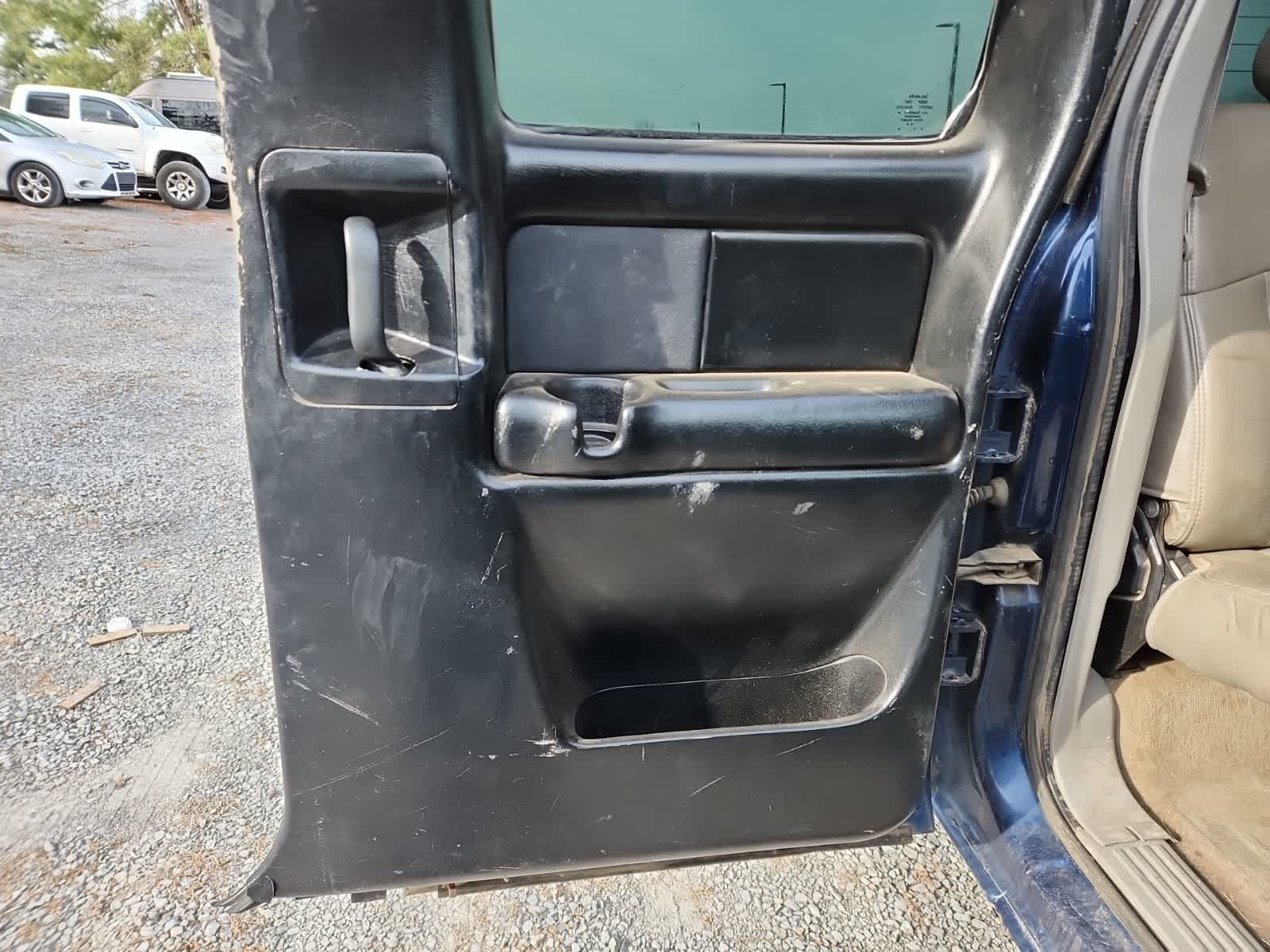

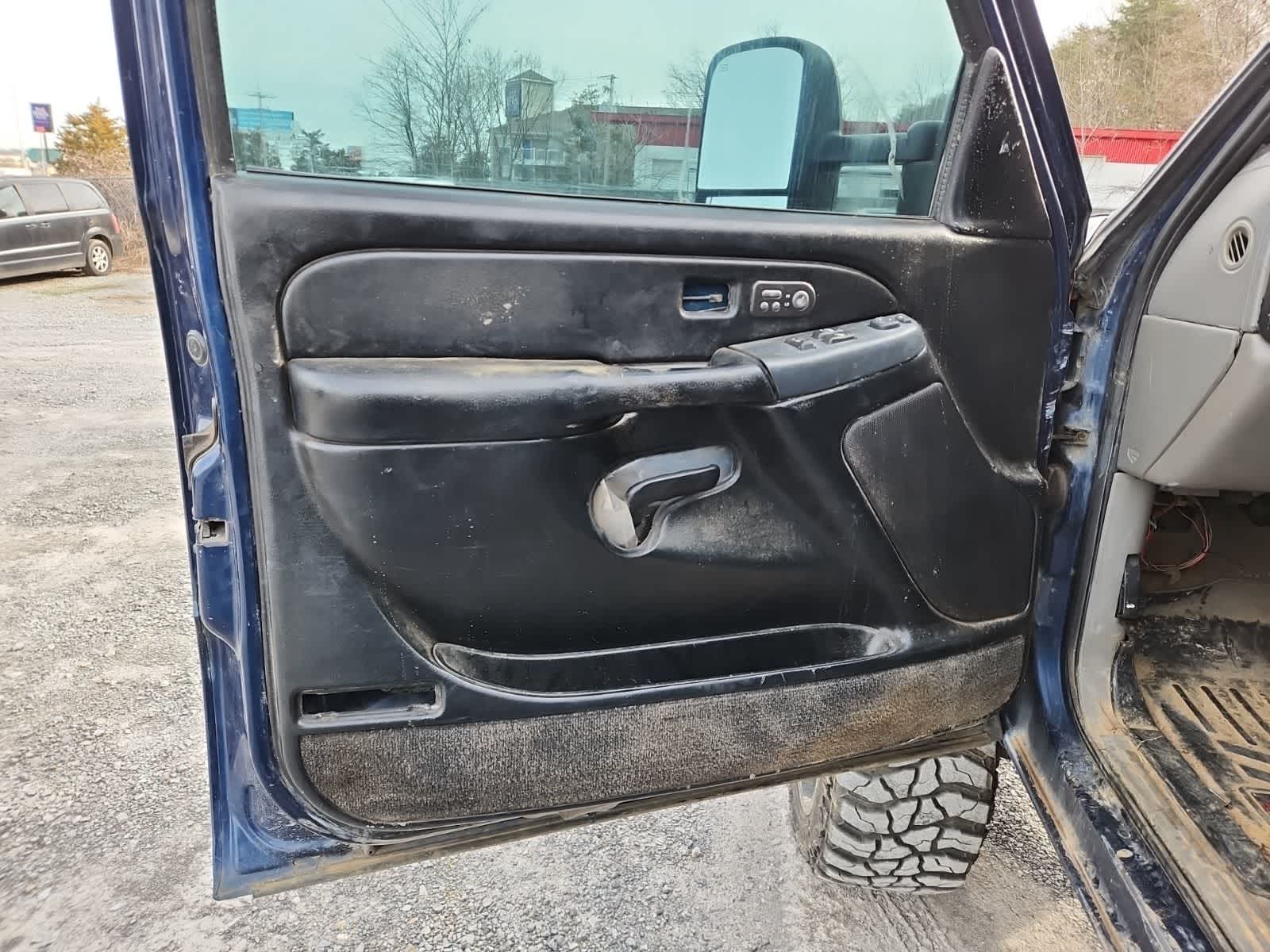

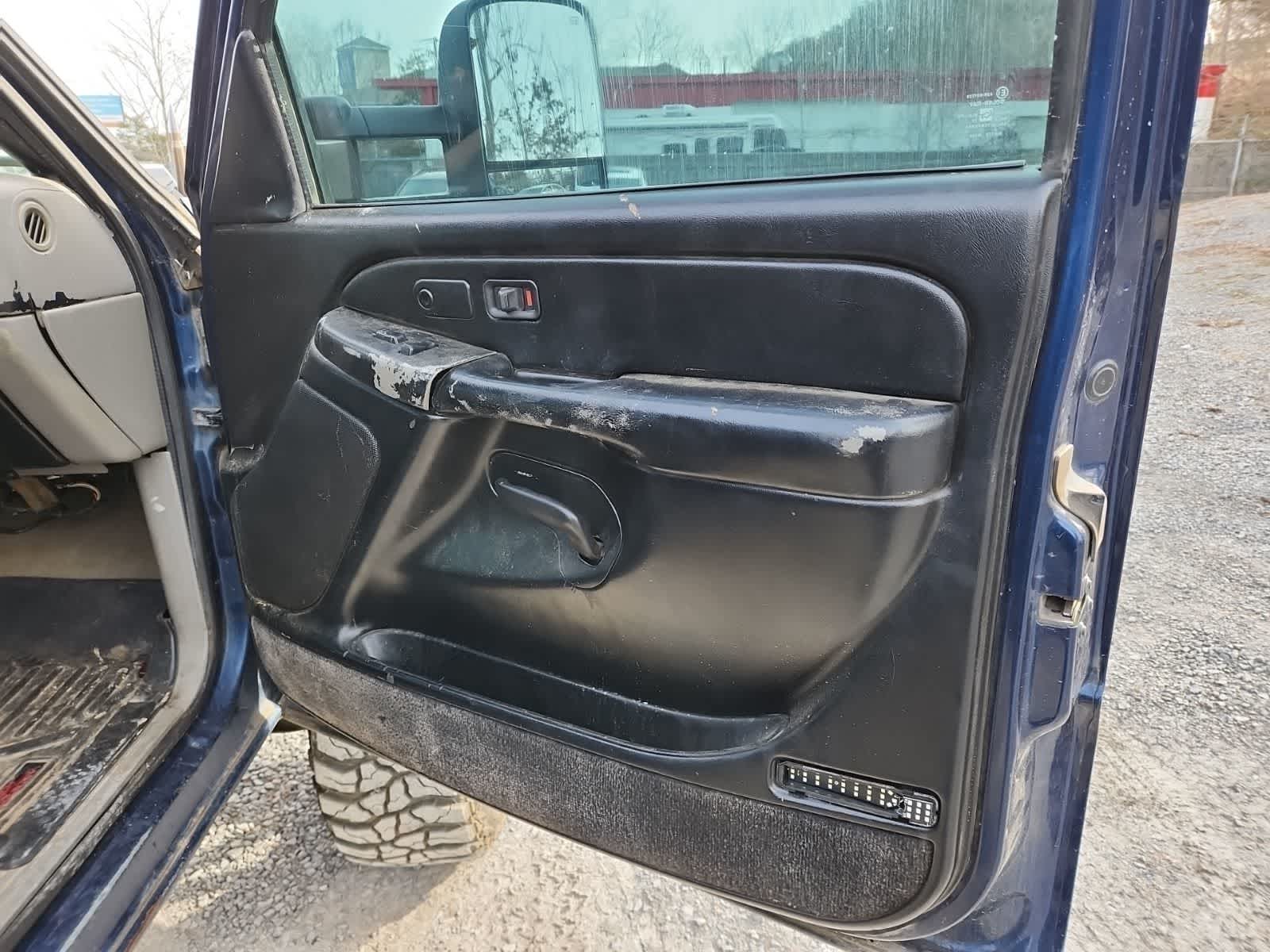

• Color-keyed soft vinyl door trim panels w/cloth inserts-inc: map pockets w/carpeted trim, door reflectors
• Electrochromic rearview mirror w/8-point compass & outside temp display

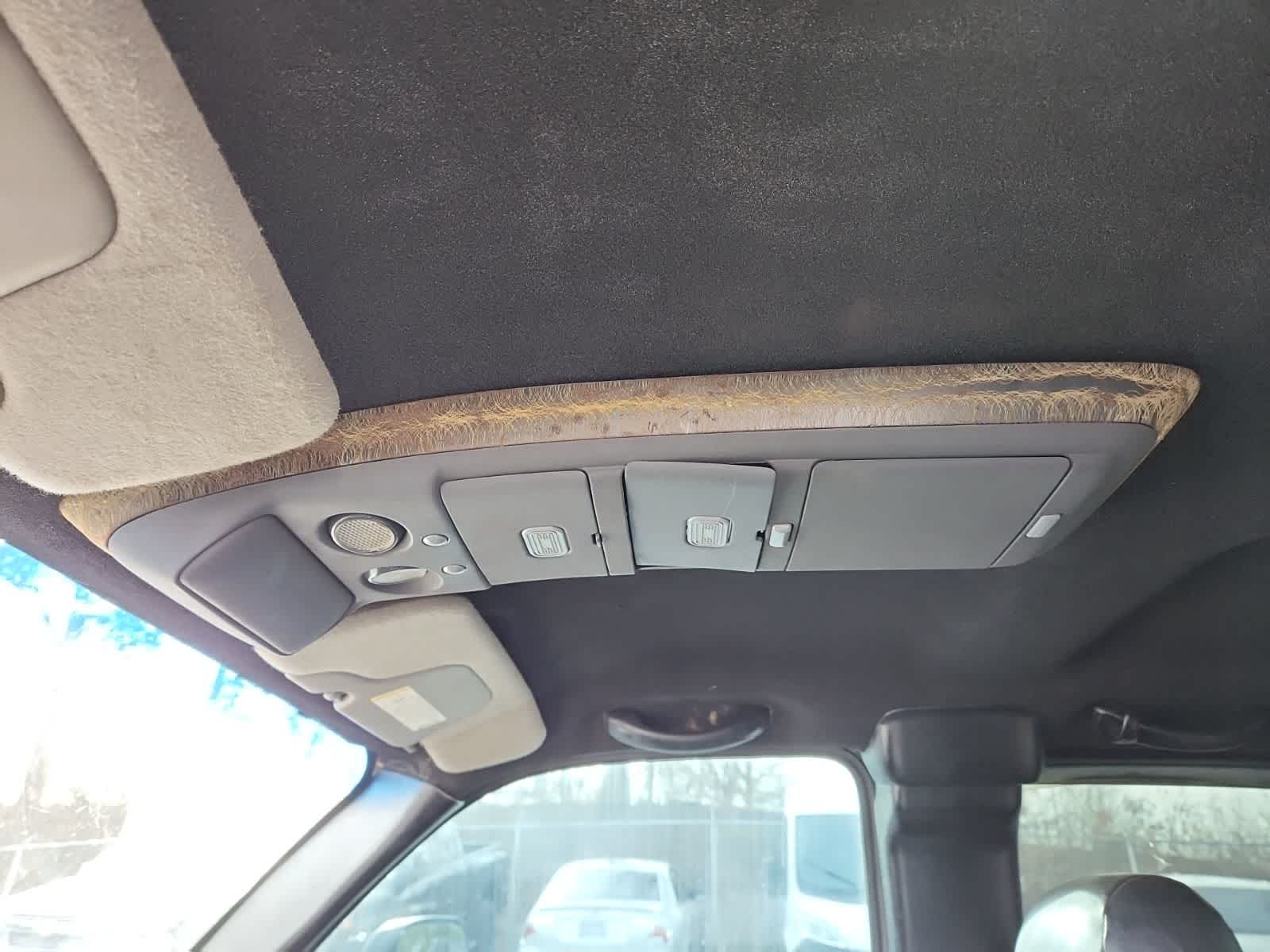

• Overhead console
• Color-keyed cloth headliner
• Dual color-keyed padded cloth sunshades w/driver storage clip, passenger mirror
• Passenger assist handles
• Lighting-inc: dome w/delayed entry feature, ashtray, glove box, underhood
• Dual foldaway coat hooks

• Four-wheel anti-lock brake system
• Driver & front passenger airbags w/passenger side deactivation switch
• Manual lap/shoulder safety belts, front/rear outboard seat positions
• Manual lap safety belts, center seat positions
• Head restraints at outboard seating positions
• Daytime running lamps
• Side door guard beams
• High/low note horn

OFF-ROAD CHASSIS PKG

• high pressure Bilstein 46mm gas shocks
• off-road jounce bumpers
• HD stabilizer bar
• skid plate pkg
• high capacity air cleaner

FLEETSIDE BODY

• (STD)

LOCKING DIFFERENTIAL

• premium carbon fiber friction plates

5.3L (325) SFI V8 (VORTEC) ENGINE

• (STD)

4-SPEED ELECTRONICALLY-CONTROLLED AUTOMATIC TRANSMISSION W/OD

• trans oil cooler
• brake/trans shift interlock (STD)

FEDERAL EMISSIONS OVERRIDE

• *must be ordered for units shipped to dealers in Federal areas w/California or Reduced Emissions*

REDUCED EMISSIONS

• *must be ordered in CT
• DC
• DE
• MA
• MD
• NH
• NJ
• NY
• PA
• RI
• VA or VT*

6400# GVWR (3600 front/3750 rear), springs (3600 front/3750 rear), axles (3925 front/ 3750 rear)

• (STD)

ETR AM/FM STEREO W/REMOTE COMPACT DISC,STEREO CASSETTE, AUTO TONE CONTROL

• seek-scan
• digital clock
• theft lock
• speed compensated volume
• enhanced performance speaker system (STD)

SOLID PAINT

• (STD)

• G80
• QGD

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Total Cooling System Capacity (qts): 13.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 3750
• Curb Weight - Front (lbs): 2833
• Curb Weight - Rear (lbs): 1936
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): 13,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3925
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Front: Hypoid
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Front (mm): 32
• Shock Absorber Diameter - Rear (mm): 46
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.13
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.14
• Rear Brake Rotor Diam x Thickness (in): 12.6 x 0.79
• Tires
• Front Tire Order Code: QGD
• Front Tire Order Code: QNK
• Rear Tire Order Code: QGD
• Rear Tire Order Code: QNK
• Spare Tire Order Code: QGD
• Spare Tire Order Code: QNK
• Front Tire Size: P265/75R16
• Front Tire Size: P245/75R16
• Rear Tire Size: P265/75R16
• Rear Tire Size: P245/75R16
• Spare Tire Size: P265/75R16
• Spare Tire Size: P245/75R16
• Front Tire Capacity (lbs): 2364
• Front Tire Capacity (lbs): 2064
• Rear Tire Capacity (lbs): 2364
• Rear Tire Capacity (lbs): 2064
• Spare Tire Capacity (lbs): 2364
• Spare Tire Capacity (lbs): 2064
• Revolutions/Mile @ 45 mph - Front: 652
• Revolutions/Mile @ 45 mph - Front: 682
• Revolutions/Mile @ 45 mph - Rear: 652
• Revolutions/Mile @ 45 mph - Rear: 682
• Revolutions/Mile @ 45 mph - Spare: 652
• Revolutions/Mile @ 45 mph - Spare: 682
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 14.0
• Steering Ratio (:1), At Lock: 13.0
• Turning Diameter - Curb to Curb (ft): 47.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 227.6
• Width, Max w/o mirrors (in): 78.5
• Height, Overall (in): 73.9
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 47.0
• Front Bumper to Back of Cab (in): 138.7
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): 78.7
• Ground to Top of Load Floor (in): 32.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 42.0
• Ground Clearance, Front (in): 8.9
• Ground Clearance, Rear (in): 8.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 60.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 56.9
• Ext'd Cab Cargo Volume (ft³): 49.7
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 38.4
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 66.3
• Second Hip Room (in): 61.5
• Summary

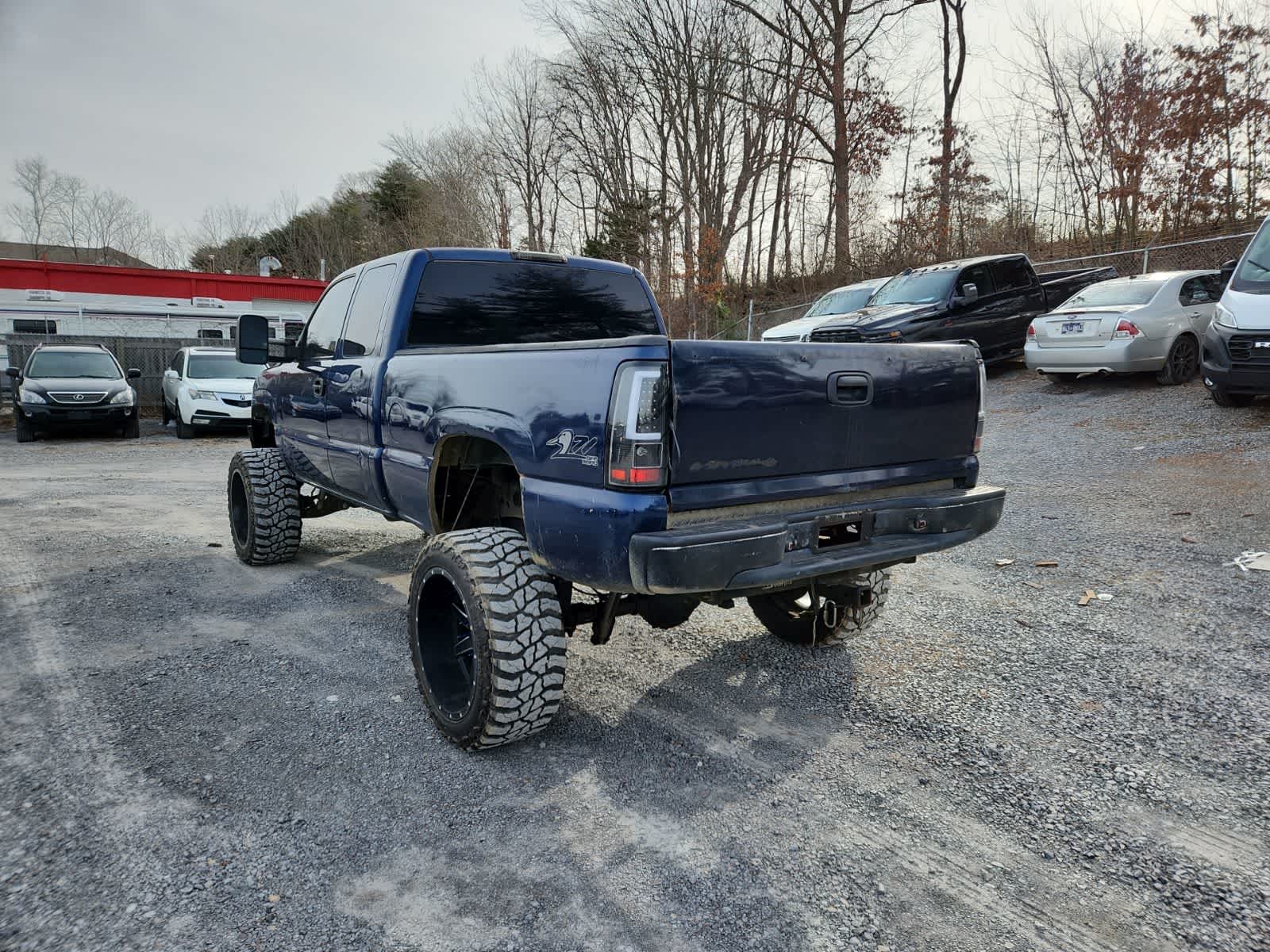

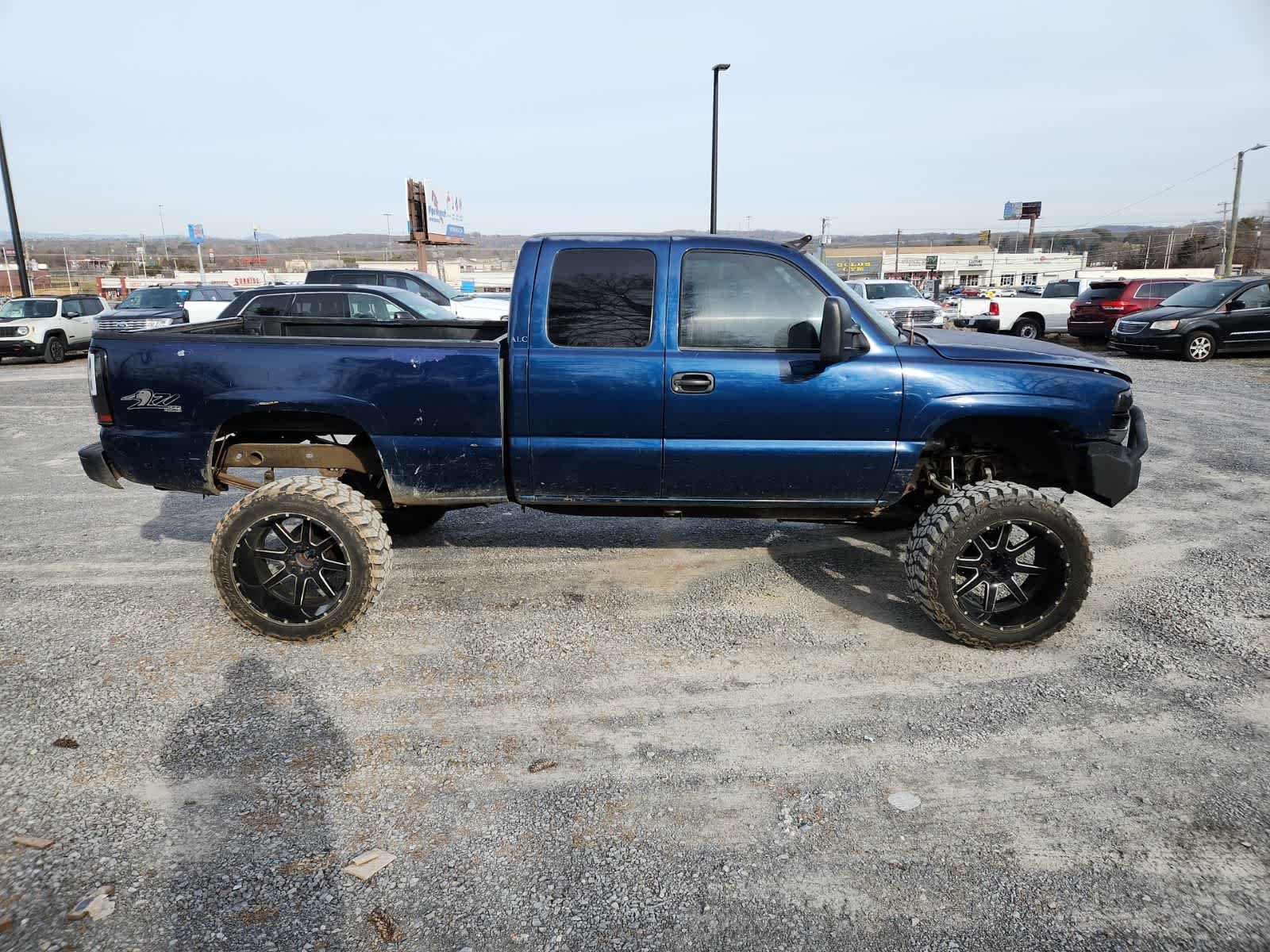

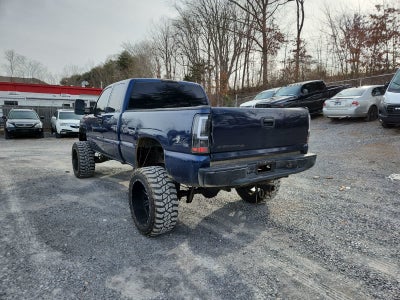

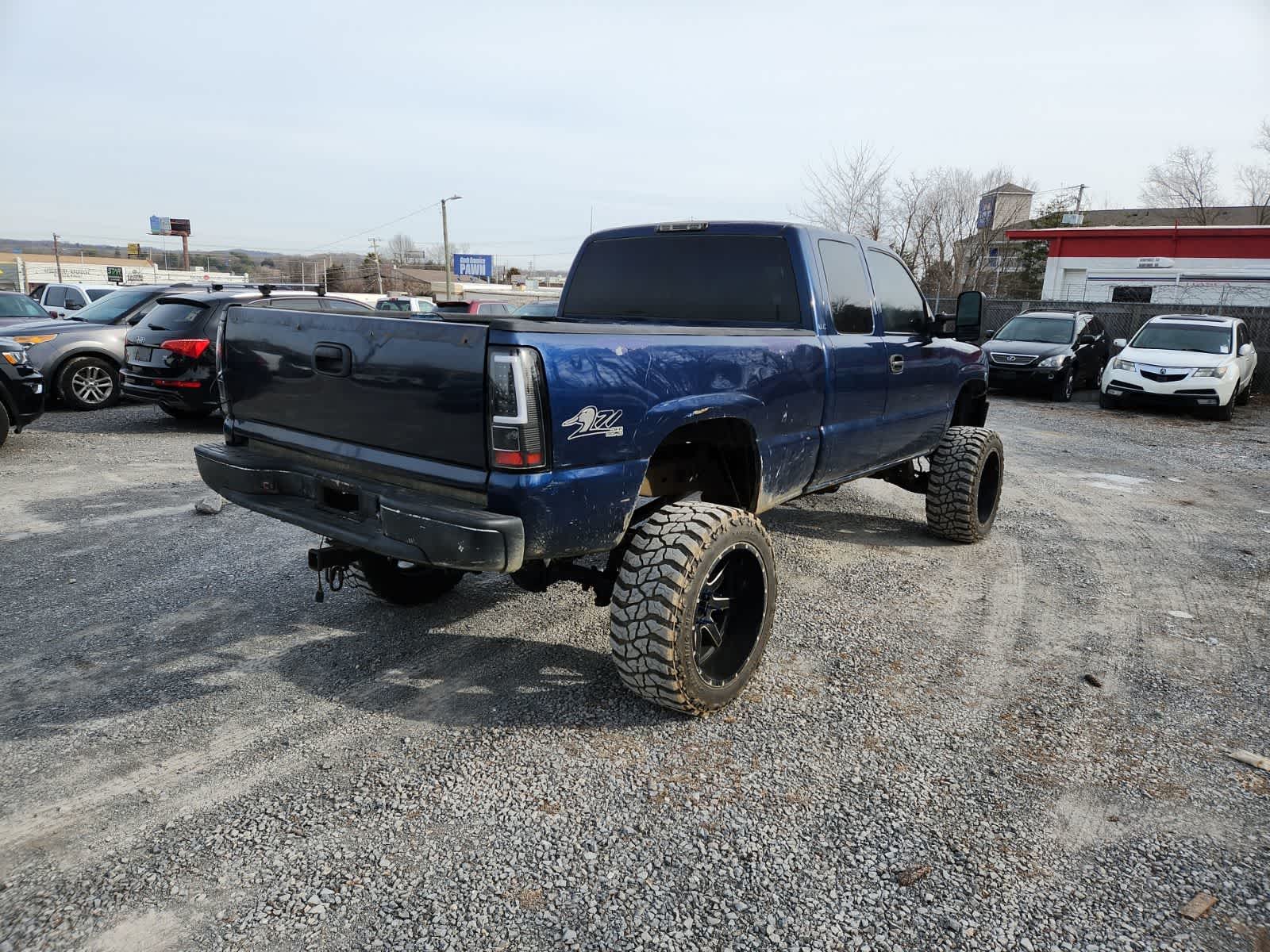

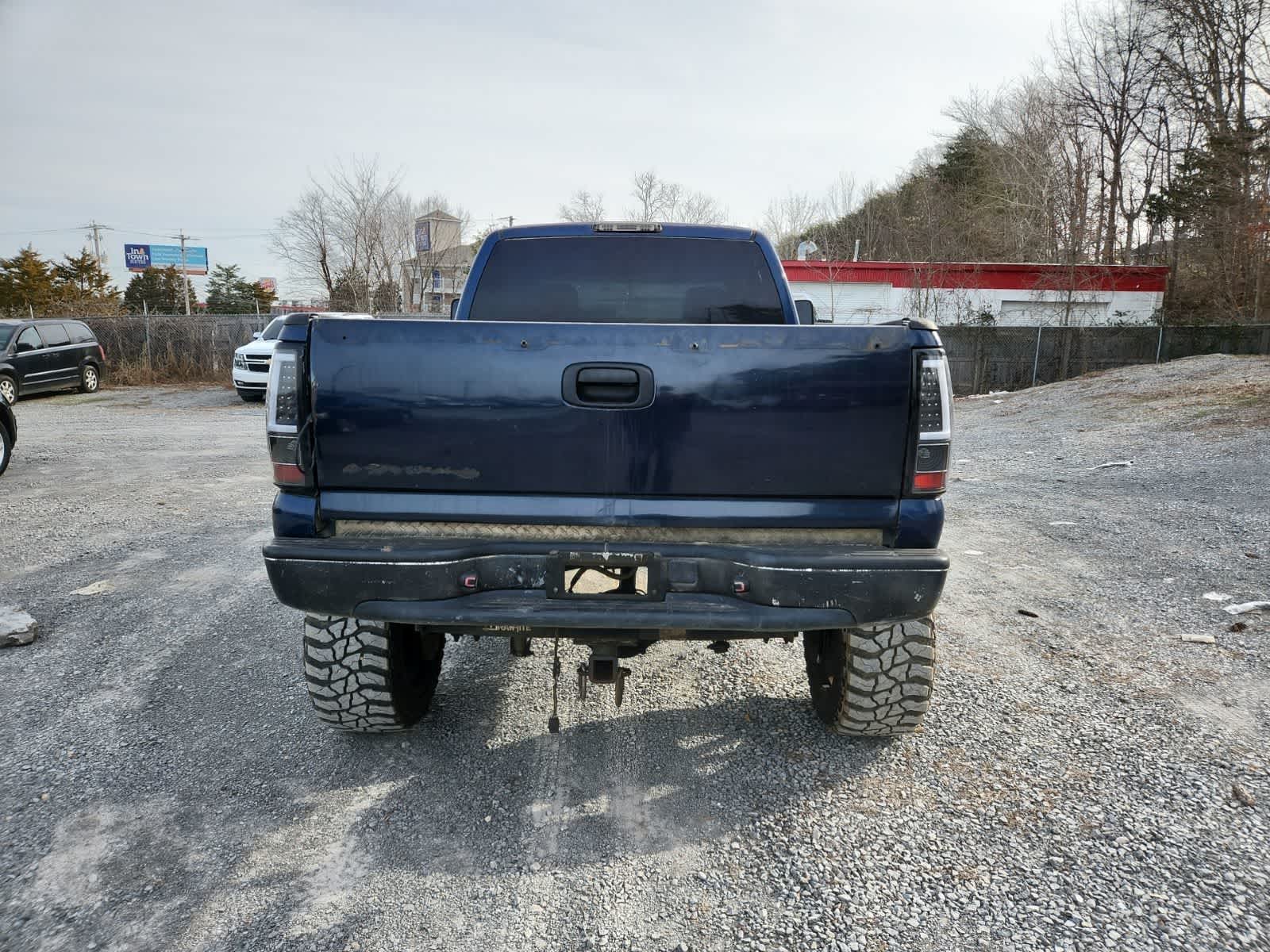

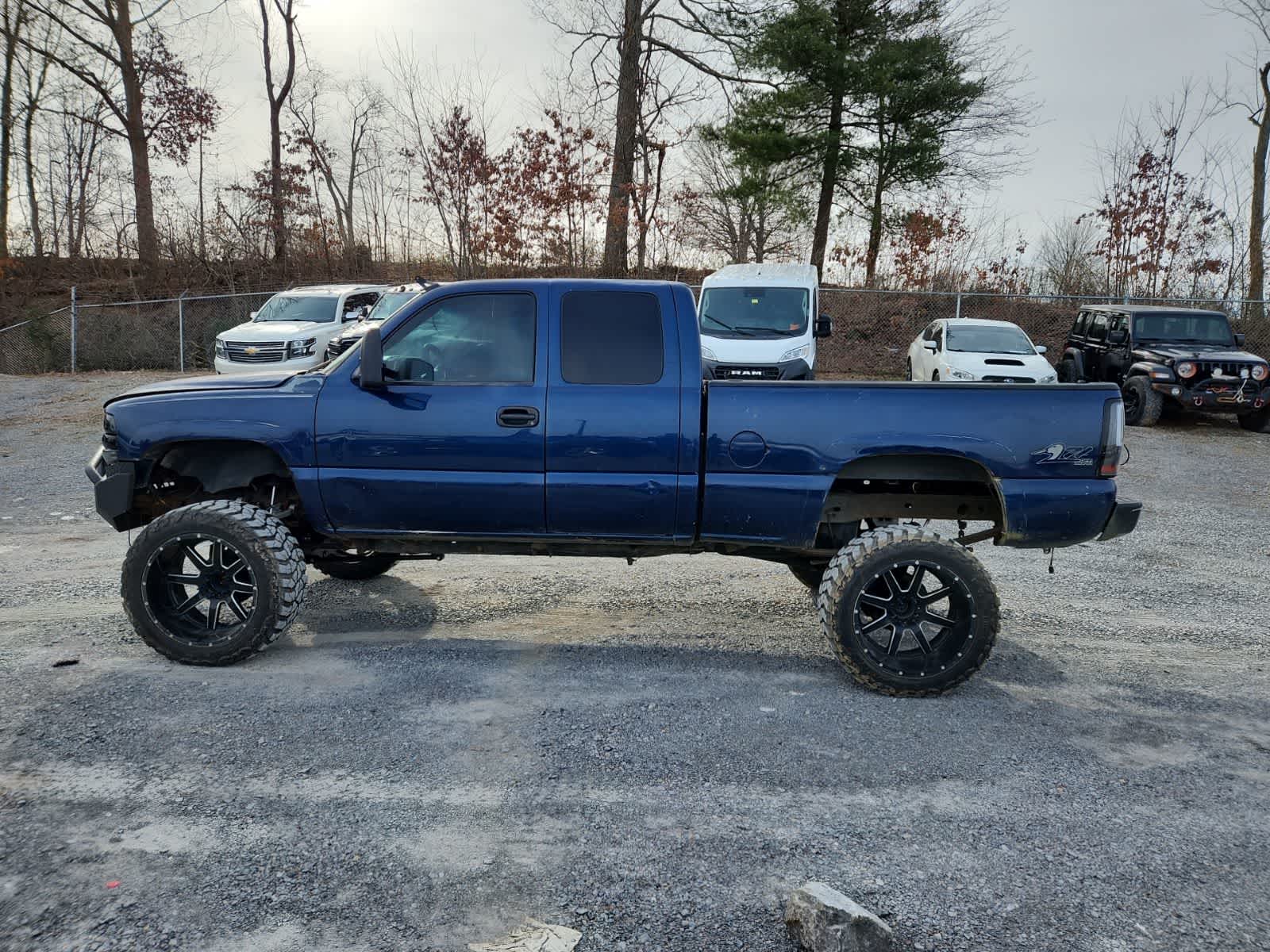

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Ext Cab 6.5' Fleetside
• Body Code: E63
